Specializing in high quality USB/SDI/AHD/CVBS/BT1120/IP/HDMI/CMOS/CCD camera modules from Korea, OEM customization - SOLUTION - SDI camera module board

NEW

DCC-2W60

Digital 3G-SDI WDR / HDR Video Module (1080p) for Broadcast . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 42x42mm 2 PCB SDI Camera Boards . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, D-zoom, DIS, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI Board Camera # 3G SDI Module # Broadcast SMPTE 292M, SMPTE 424M # Camera Module # PCB Module # DCC 2W60, DCC2W60 # 50fps, 60fps # Autofocus

DCC-2S0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.3" 2MP Sony Pregius Color CMOS - IMX392LQR-C (Global Shutter) . 42x42mm Type 1 PCB Camera Board . WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol, Strobe Out . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 2S0, DCC2S0 # 50fps, 60fps # BT.1120 / BT1120 # Autofocus, Auto Focus

DCC-2M0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.6" 2MP Onsemi Color CMOS - AR0234CS (Global Shutter) . 28x28mm Type 1 PCB Micro WDR Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port / DC5~12V Refer to the DCM series for complete miniature cameras. # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # DCC 2M0, DCC2M0 # 50fps, 60fps # Globalshutter

DCC-2K0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 26x22mm Type 1 PCB Micro SDI Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . OSD Port, RS232C UART Serial Port / DC5V # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 2K0, DCC2K0 # 50fps, 60fps

DCC-1Z0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2" 2MP Sony Color CMOS - IMX385LQR-C . 42x42mm Type 1 PCB Camera Board . WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens Mount) / DC12V # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 1Z0, DCC1Z0 # 50fps, 60fps # BT.1120 / BT1120 # Autofocus

DCC-1Y0

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 32x32mm Type 1 PCB Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, C-mount, CS-mount) / DC12V # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # Medical Camera (Laparoscopy, Laparoscope, Endoscopy, Endoscope) # DCC 1Y0, DCC1Y0

EOL

DCC-1Y60

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 32x32mm 1 PCB SDI Camera Board . WDR / HDR, DSS(Sens-up), 3D-DNR/3DNR, TDN ICR, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # DCC 1Y60, DCC1Y60 # 50fps, 60fps

DCC-1N0

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . Ø21x16mm Type 2 PCB Micro SDI Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . RS232C UART Serial Port / DC3.3V # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # DCC 1N0, DCC1N0

DCC-1G60

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 17Ø / 17phi Type 3 PCB Micro SDI Camera Boards . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, DIS, Serial Protocol . OSD port, RS485 / DC5~12V Refer to the DCB series for complete miniature cameras. # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # 17 phi # DCC 1G60, DCC1G60 # 50fps, 60fps

DCC-1G0

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 17Ø / 17Phi Type 3 PCB Micro SDI Camera Boards . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . OSD port, RS485 / DC5~12V Refer to the DCB series for complete miniature cameras. # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # 17 Phi # Medical Camera (Laparoscopy, Laparoscope, Endoscopy, Endoscope) # DCC 1G0, DCC1G0

DCC-1E60

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 28x28mm Type 1 PCB Micro SDI Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, DIS, Serial Protocol . Built-in OSD Switch, RS232C UART Serial Port / DC5~12V Refer to the DCM series for complete miniature cameras. # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # DCC 1E60, DCC1E60 # 50fps, 60fps

DCC-1E0

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 28x28mm Type 1 PCB Micro SDI Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . Built-in OSD Switch, RS232C UART Serial Port / DC5~12V Refer to the DCM series for complete miniature cameras. # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # Medical Camera (Laparoscopy, Laparoscope, Endoscopy, Endoscope) # DCC 1E0, DCC1E0

DCC-9460

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 42x42mm Type 1 PCB Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, D-zoom, DIS, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # DCC 9460, DCC9460 # 50fps, 60fps # Autofocus

DCC-940

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 42x42mm Type 1 PCB Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # DCC 940, DCC940 # Autofocus

DCC-920

Digital SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 22x22mm Type 2 PCB Micro SDI Camera Boards . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . RS232C UART Serial Port / DC12V # HD-SDI Board Camera # HD SDI Module # Camera Module # PCB Module # DCC 920, DCC920

EOL

DCC-830

Digital SDI WDR Video Module (1080p) . 32x32mm Type 1 PCB Camera Board . WDR or 3D-DNR/3DNR, DSS(Sens-up), TDN ICR, DC Auto IRIS . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens mount, C-mount, CS-mount) / DC12V . 1/3" 2MP Panasonic Color CMOS - MN34227 # Board Camera # Camera Module # PCB Module # DCC 830, DCC830 ** Discontinued. This model is replaced by DCC-1Y0.

EOL

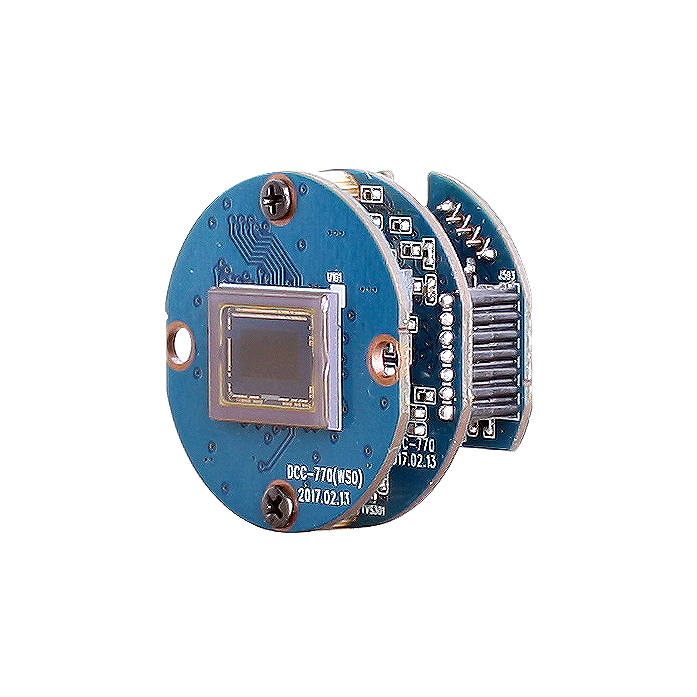

DCC-770

Digital 3G-SDI WDR Video Module (1080p) . Ø25mm Type 3 PCB Micro SDI Camera Board . WDR, DSS(Sens-up), 3D-DNR, D-zoom, Serial Protocol . RS232C / DC12V . 1/2.8" 2MP Sony Starvis Color CMOS - IMX291LQR-C * Discontinued

EOL

DCC-650

Digital 3G-SDI WDR Video Module (1080p) . 42x42mm Type 1 PCB Camera Board . WDR, DSS(Sens-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens Mount) / DC12V . 1/1.9" 2MP Sony Color CMOS - IMX185LQJ-C ** Discontinued. DCC-1Z0 replaces this model. # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 650, DCC650 # Autofocus
