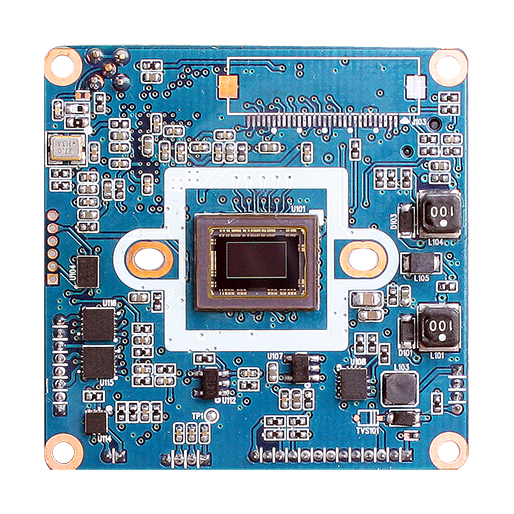

SDI camera module board
DCC-9460
Digital 3G-SDI WDR / HDR Video Module (1080p)
. 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C
. 42x42mm Type 1 PCB Camera Board
. WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, D-zoom, DIS, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol
. Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V
# 3G-SDI Board Camera
# 3G SDI Module
# Camera Module
# PCB Module
# DCC 9460, DCC9460
# 50fps, 60fps
# Autofocus
Specification
1080p SDI interface Color CMOS camera PCB module / board
Model |
DCC-9460 |
|
Signal System |
SDI |
|
Pickup Device | 1/2.8"(D-6.46mm) 2.12MP Sony Color CMOS Sensor | |
Scanning System | 16:9 Progressive | |
Sync. System | Internal | |
Total Pixels | 2.16MP [1945(H)x1109(V)] | |
Active Pixels | 2.12MP [1937(H)x1097(V)] | |
Min. Illumination | 0.01Lux(F2.5 - 30IRE), 0.005Lux(ICR on), 0.003Lux(DSS on) | |
ICR | Available | |
Video Out | 3G-SDI: 1080p@25/30/50/60, 1080i@50/60, 720p25/30/50/60 and Analog Videos(AHD or CVBS) | |
Lens | Motorized, Fixed & DC Auto IRIS Lens | |
Lens Holder(Mount) | Available (Board & Varifocal Mount: M12 / D14) | |
OSD | Via 5-direction OSD Tact-switch, AD or GPIO type OSD port, and Serial Communication | |
Camera Title | Off, On (Max. 8 Characters) | |
Language | English, Chinese(Simplified), Chinese(Traditional), Japanese, Korean | |
Exposure | DC, Manual | |
White Balance | AUTO, AUTOext, Preset, Manual | |
BLC | Off, HLC, BLC, WDR | |
Day & Night | Auto, Color, B/W, EXT. D&N | |
Gain Control | AGC (0~10) | |
Electronic Shutter | 1/25(30)~1/25,600(30,000)sec (50Hz/60Hz) | |
DSS (Sens-up) | Off, On (Max. x32) | |
Noise Reduction | 3DNR (Off, Low, Middle, High) | |
Mirror | Off, On (Mirror, Flip, Both) | |
Other Features | Motion Detection (4 Zones), Privacy Mask (16 Zones), ACE, D-Zoom, Defog, DIS, Gamma, Shading Etc. | |
Microphone | N/A | |
Communication | Available (Pelco-D & ParanTek Serial Protocol) | |
Power Source | DC 12V | |
Power Consumption | Less than 3.6 Watts (300mA@DC12V) | |
Operating Temp. | -10℃~55℃ (Humidity: 0%RH ~ 90%RH) | |
Size | 42mm x 42mm (1 Board) | |
Weight | 9g (without OLPF) | |
