NEW

DCC-2W60

Digital 3G-SDI WDR / HDR Video Module (1080p) for Broadcast . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 42x42mm 2 PCB SDI Camera Boards . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, D-zoom, DIS, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI Board Camera # 3G SDI Module # Broadcast SMPTE 292M, SMPTE 424M # Camera Module # PCB Module # DCC 2W60, DCC2W60 # 50fps, 60fps # Autofocus

NEW

ACC-2X0

Analog AHD WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 32x32mm Type 1 PCB Micro AHD Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom . Built-in OSD Switch, UTC, Audio (Microphone) / DC12V # AHD Board Camera # AHD Module # Camera Module # PCB Module # ACC 2X0, ACC2X0 # TVI CVI Compatible

NEW

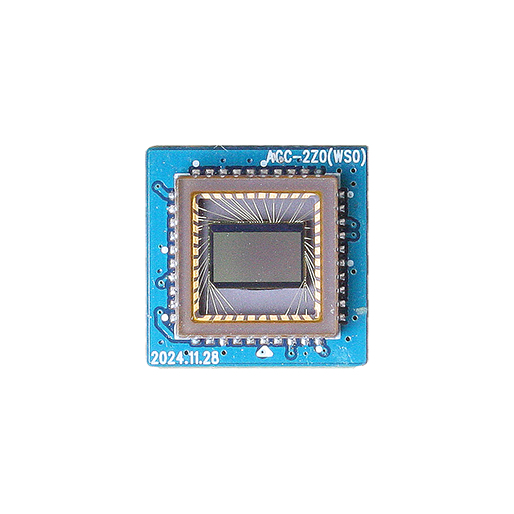

ACC-2Z0

Analog AHD Video Module (1080p) . 1/2.9" 2MP Color CMOS . 14x14mm Type 1 PCB Micro AHD Camera Board . DC 3.3V # AHD Board Camera # AHD Module # Camera Module # PCB Module # ACC 2Z0, ACC2Z0

NEW

DCC-2W30

Digital H.264 IP WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Color CMOS - IMX327LQR-C . 42x42mm Type 2 PCB Camera Boards . WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Network Protocol . Service video output, Select 1 (CVBS, AHD, TVI, or CVI) . Alarm, Audio (Line Level), RS485 UART Serial Out Port, SD Card, RTC, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V or POE # IP Board Camera # IP Module # Camera Module # PCB Module # DCC 2W30, DCC2W30 # Autofocus

DCC-2T0

Digital H.264 IP WDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 26x22mm Type 2 PCB Micro IP Camera Board . WDR, DSS(Sense-up) or 3D-DNR/3DNR, Network Protocol . DC5V or POE # IP Board Camera # IP Module # Camera Module # PCB Module # DCC 2T0, DCC2T0

DCC-2S0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.3" 2MP Sony Pregius Color CMOS - IMX392LQR-C (Global Shutter) . 42x42mm Type 1 PCB Camera Board . WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol, Strobe Out . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 2S0, DCC2S0 # 50fps, 60fps # BT.1120 / BT1120 # Autofocus, Auto Focus

DCC-2S30

Digital H.264 IP WDR / HDR Video Module (1080p) . 1/2.3" 2MP Sony Pregius Color CMOS - IMX392LQR-C (Global Shutter) . 42x42mm Type 2 PCB Camera Boards . WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Network Protocol, Strobe Out . Alarm, Audio (Line Level), RS485 UART Serial Out Port, SD Card, RTC, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V or POE # IP Board Camera # IP Module # Camera Module # PCB Module # DCC 2S30, DCC2S30 # Autofocus, Auto Focus

DCA-BI100

An optional IP module to encode BT.1120 data into IP (H.264) . Input Video: ParanTek BT.1120 to IP . Output Video: H.264 IP Streaming . Audio Input & Output (Line) . Alarm Inputs & Output (2 Inputs, 1 Output) . Micro-SD Memory Card (Video Saving) . RS485 Out (No Input supported) . Factory/System Reset . Compatible with DCC-1Z0, DCC-2S0, DCC-9410

DCA-2N0

An optional isolated DC-DC power module for camera boards. . Input: DC6~36V (Isolated) . Output: DC12V . Compatible for any Camera Modules . 32x32mm type 1-board (Weight: 8g)

ACC-2R0

Analog CVBS (NTSC or PAL) Video Module (D1) . 1/3″ 520K/610K Sharp Color CCD . 32x32mm Type 1 PCB Camera Board . DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, DC Auto IRIS, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C/CS Lens Mount) / DC12V ** ACC-2R0N ** ACC-2R0P # CVBS Board Camera # CVBS Module # Camera Module # PCB Module # ACC 2R0, ACC2R0

DCA-IPSub

An optional module to enable additional functions for the DCC-1M0 . Audio Input & Output (Line) . Alarm Inputs & Output (2 Inputs, 1 Output) . Micro-SD Memory Card (Video Saving) . RS485 Out (No Input supported) . Factory/System Reset . Compatible with DCC-1M0

ACC-2Q0

Analog AHD WDR Video Module (1080p) . 1/2.7" 2MP Color WDR CMOS . Ø19.4mm Type 1 PCB Micro AHD Differential Camera Board . UTC / DC 3.3V # AHD Board Camera # AHD Module # AHD Differential # Camera Module # PCB Module # ACC 2Q0, ACC2Q0 # TVI CVI Compatible

ACC-2P0

Analog CVBS (NTSC or PAL) Video Module (D1) . 1/4″ 360K Color CMOS . 10.8Ø×9.4mm Type 2 PCB Micro CVBS Camera Boards . DC3.3V # CVBS Board Camera # CVBS Module # Camera Module # PCB Module # ACC 2P0, ACC2P0

ACC-2N0

Analog AHD WDR / HDR Video Module (1944p) . 1/2.8" 5MP Sony Starvis Color CMOS - IMX335LQN-C . 32x32mm Type 1 PCB Micro AHD Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom . Built-in OSD Switch, UTC, Audio (Microphone) / DC12V # AHD Board Camera # AHD Module # Camera Module # PCB Module # ACC 2N0, ACC2N0 # TVI CVI Compatible

DCC-2M0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.6" 2MP Onsemi Color CMOS - AR0234CS (Global Shutter) . 28x28mm Type 1 PCB Micro WDR Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . Built-in OSD Switch, OSD Port, RS232C UART Serial Port / DC5~12V Refer to the DCM series for complete miniature cameras. # 3G-SDI Board Camera # 3G SDI Module # Camera Module # PCB Module # DCC 2M0, DCC2M0 # 50fps, 60fps # Globalshutter

ACC-2M0

Analog AHD WDR / HDR Video Module (1080p) . 1/2.6" 2MP Onsemi Color CMOS - AR0234CS (Global Shutter) . 28x28mm Type 1 PCB Micro WDR Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . Built-in OSD Switch, OSD port, RS232C UART Serial Port, UTC / DC5~12V Refer to the AHM series for complete miniature cameras. # AHD Board Camera # AHD Module # Camera Module # PCB Module # ACC 2M0, ACC2M0 # Globalshutter # TVI CVI Compatible

DCC-2K0

Digital 3G-SDI WDR / HDR Video Module (1080p) . 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C . 26x22mm Type 1 PCB Micro SDI Camera Board . WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, D-zoom, Serial Protocol . OSD Port, RS232C UART Serial Port / DC5V # 3G-SDI / HD-SDI Board Camera # 3G SDI Mdoule, HD SDI Module # Camera Module # PCB Module # DCC 2K0, DCC2K0 # 50fps, 60fps

ACC-2L0

Analog CVBS (NTSC or PAL) Video Module (D1) . 1/4″ 360K Color CMOS . 32×32mm Type 1 PCB Micro CVBS Camera Board . Built-in OSD Switch, Audio (Microphone) / DC5~12V # CVBS Board Camera # CVBS Module # Camera Module # PCB Module # ACC 2L0, ACC2L0
