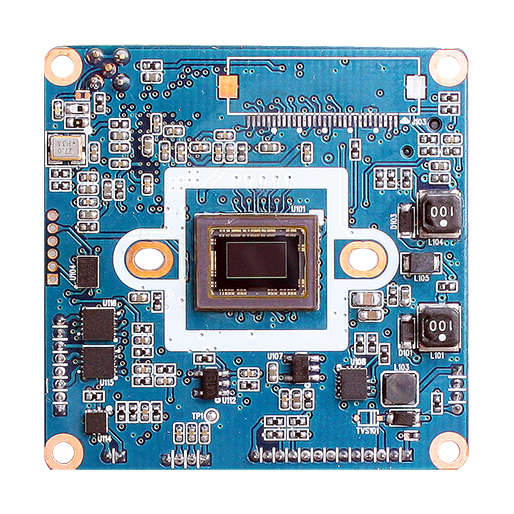

DCC-940

SDI camera module board

DCC-940

Digital SDI WDR / HDR Video Module (1080p)
. 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C
. 42x42mm Type 1 PCB Camera Board
. WDR / HDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Serial Protocol
. Built-in OSD Switch, OSD Port, RS232C UART Serial Port, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V

# HD-SDI Board Camera
# HD SDI Module
# Camera Module
# PCB Module
# DCC 940, DCC940
# Autofocus

Specification

1080p SDI interface Color CMOS camera PCB module / board


Model

DCC-940

Signal System

SDI

Pickup Device

1/2.8"(D-6.46mm) 2.12MP Sony Color CMOS Sensor

Scanning System

16:9 Progressive

Sync. System

Internal

Total Pixels

2.16MP [1945(H)x1109(V)]

Active Pixels

2.12MP [1937(H)x1097(V)]

Min. Illumination

0.01Lux(F2.5 - 30IRE), 0.005Lux(ICR on), 0.003Lux(DSS on)

 ICR

Available

Video Out

HD-SDI: 1080p@25/30, 1080i@50/60, 720p25/30/50/60 and Analog Videos(AHD or CVBS)

Lens

Motorized, Fixed & DC Auto IRIS Lens

Lens Holder(Mount)

Available (Board & Varifocal Mount: M12 / D14 / C/CS)

OSD

Via 5-direction OSD Tact-switch, AD or GPIO type OSD port, and Serial Communication

Camera Title

Off, On (Max. 8 Characters)

Language

English, Chinese(Simplified), Chinese(Traditional), Japanese, Korean

Exposure

DC, Manual

White Balance

AUTO, AUTOext, Preset, Manual

BLC

Off, HLC, BLC, WDR

Day & Night

Auto, Color, B/W, EXT. D&N

Gain Control

AGC (0~10)

Electronic Shutter

1/25(30)~1/25,600(30,000)sec (50Hz/60Hz)

DSS (Sens-up)

Off, On (Max. x32)

Noise Reduction

3DNR (Off, Low, Middle, High)

Mirror

Off, On (Mirror, Flip, Both)

Other Features

Motion Detection (4 Zones), Privacy Mask (16 Zones), ACE, D-Zoom, Defog, Gamma, Shading Etc.

Microphone

N/A

Communication

Available (Pelco-D & ParanTek Serial Protocol)

Power Source

DC 12V

Power Consumption

Less than 3.6 Watts (300mA@DC12V)

Operating Temp.

-10℃~55℃ (Humidity: 0%RH ~ 90%RH)

Size

42mm x 42mm (1 Board)

Weight

9g (without OLPF)


DCC-9410: BT.1120 Output

DCC-9420: BT.1120 & SDI Output

DCC-9460: 3G-SDI Output

DCC-9490: 59.94Hz
