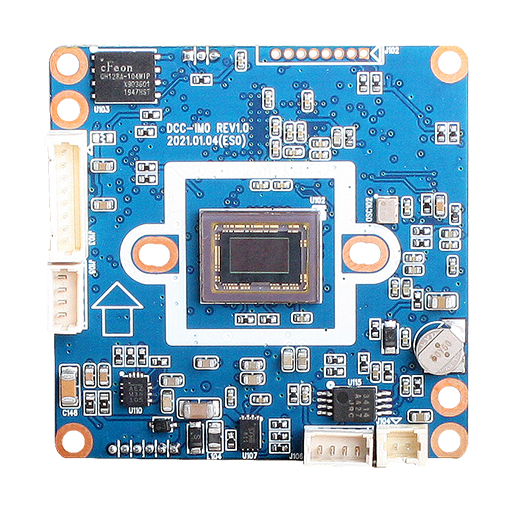

IP camera module board
DCC-1M0
Digital H.264 IP WDR Video Module (1080p)
. 1/2.8" 2MP Sony Starvis Color CMOS - IMX327LQR-C
. 42x42mm Type 1 PCB IP Camera Board
. WDR, DSS(Sense-up) or 3D-DNR/3DNR, TDN ICR, Auto Focus Motorized Zoom Lens, DC Auto IRIS, Network Protocol
. Alarm, Audio (Line Level), RS485 UART Serial Out Port, SD Card, RTC, Lens Holder Available (M12 Lens Mount, D14 Lens Mount, C-mount, CS-mount) / DC12V or POE
# IP Board Camera
# IP Module
# Camera Module
# PCB Module
# DCC 1M0, DCC1M0
# Autofocus
Specification
1080p IP interface Color CMOS camera PCB module / board
Subsidiary Board: DCA-IPSub
Model |
DCC-1M0 |
|
Signal System |
IP |
|
Pickup Device | 1/2.8"(D-6.46mm) 2MP Sony Color CMOS Sensor | |
Scanning System | 16:9 Progressive | |
Sync. System | Internal | |
Total Pixels | 2.16MP [1945(H)x1109(V)] | |
Active Pixels | 2.12MP [1937(H)x1097(V)] | |
Min. Illumination | 0.1Lux, 0.05(ICR on), 0.003Lux(DSS on) | |
ICR | Available | |
Video Out | H.264 or MJPEG: Max. 30fps @ any resolutions below 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240 Duplex Streaming Supported Network Protocol: TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif | |
Lens | Motorized, Fixed & DC Auto IRIS Lens | |
Lens Holder(Mount) | Available (Board & Varifocal Mount: M12 / D14 / C/CS) | |
OSD | Via Webpage Viewer (Supported Browser: IE11.0 or newer, Chrome, Firefox, Safari, Opera) The Image can be displayed with any browser without Active-X. With IE browser, H.264 videos can be displayed after installing Active-X provided. | |
Camera Title | Off, On (Max. 8 Characters) | |
Language | English | |
Exposure | AE, Manual | |
White Balance | AUTO, AUTOext, Preset, Manual | |
WDR | Off, On(Low Middle, High) WDR can't work together with 3DNR or DSS | |
Day & Night | Auto, Color, B&W, Ext. | |
Electronic Shutter | 1/25(30)~1/30.000 sec (50Hz/60Hz) | |
DSS (Sens-up) | Off, On (Max. x32) DSS can't work together with WDR or 3DNR | |
Noise Reduction | 3DNR (Low, Middle, High) 3DNR can't work together with WDR or DSS | |
Mirror | Off, On (Mirror, Flip) | |
Other Features | Motion Detection (4 Zones), Privacy Mask (8 Zones), Defog, Gamma Etc. | |
Microphone | Line In/Out (Option: IP Sub Board) | |
Sensor / Alarm | Sensor In(2) / Alarm Out(1) (Option: IP Sub Board) | |
SD Memory Card | Available (Option: IP Sub Board) | |
Communication | IP (TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif 17.06) | |
Power Source | DC 12V / POE (Option) | |
Power Consumption | Less than 3.2 Watts (260mA@DC12V) | |
Operating Temp. | -10℃~55℃ (Humidity: 0%RH ~ 90%RH) | |
Size | 42mm x 42mm (1 Board) | |
Weight | 8.5g (without OLPF) | |
Optional Board: IP Sub Board (Sensor In/Out, Audio Line In/Out, RS485 Out, SD Memory Card)
